自身免疫性疾病的影像学表现

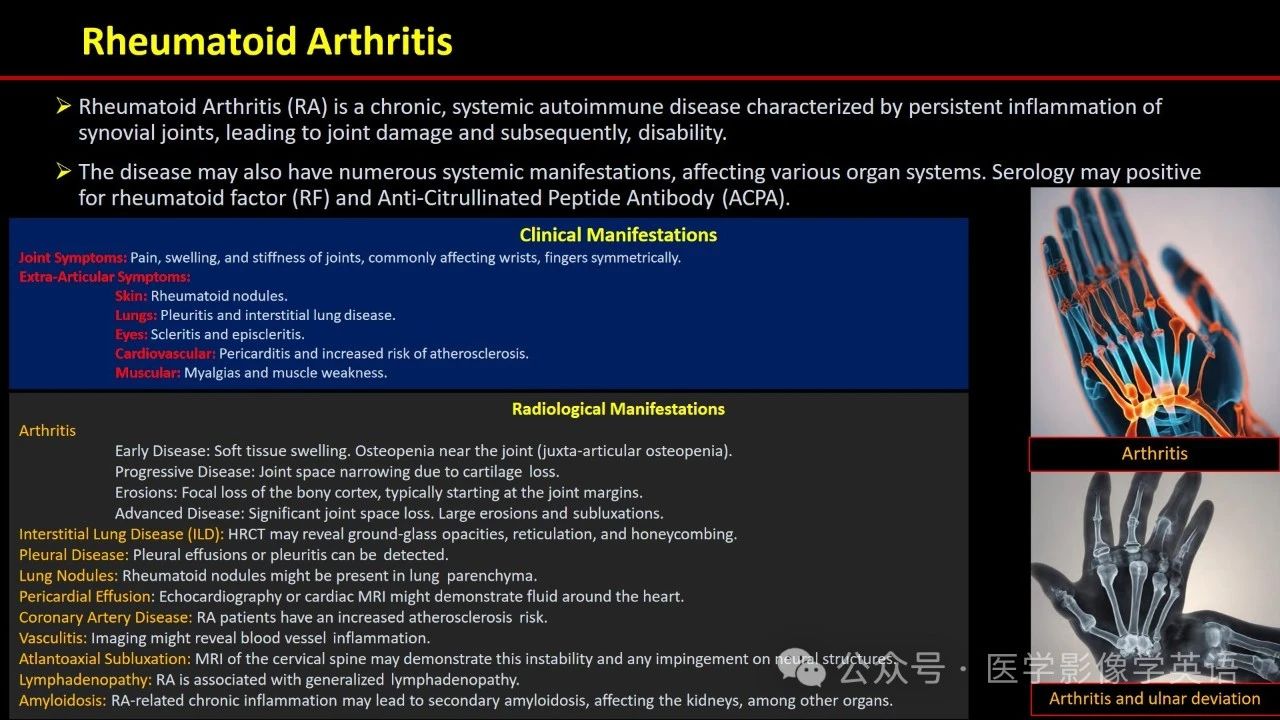

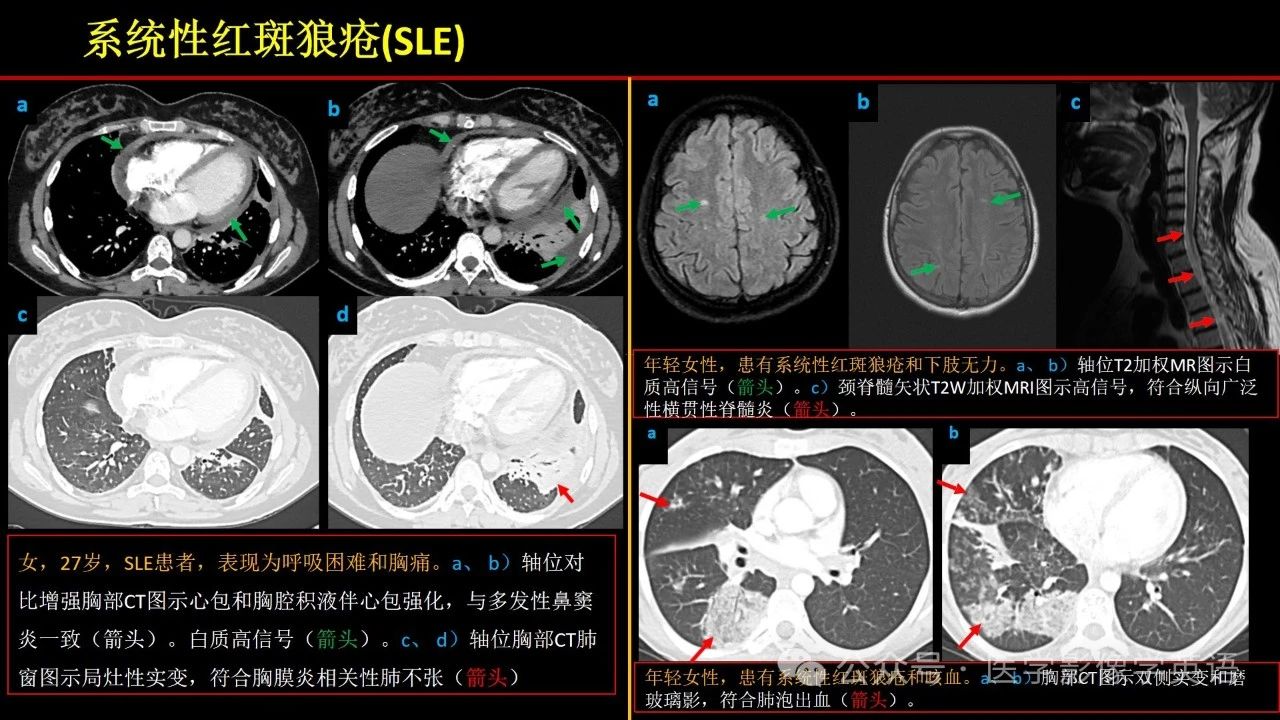

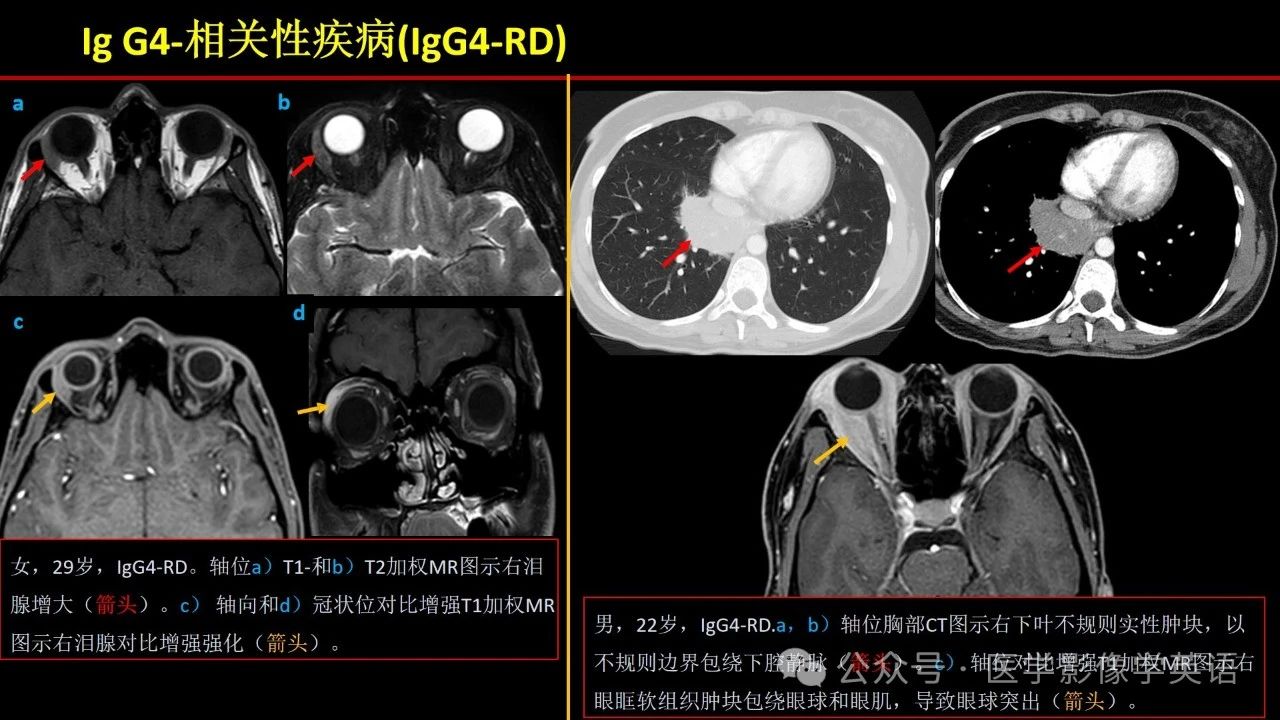

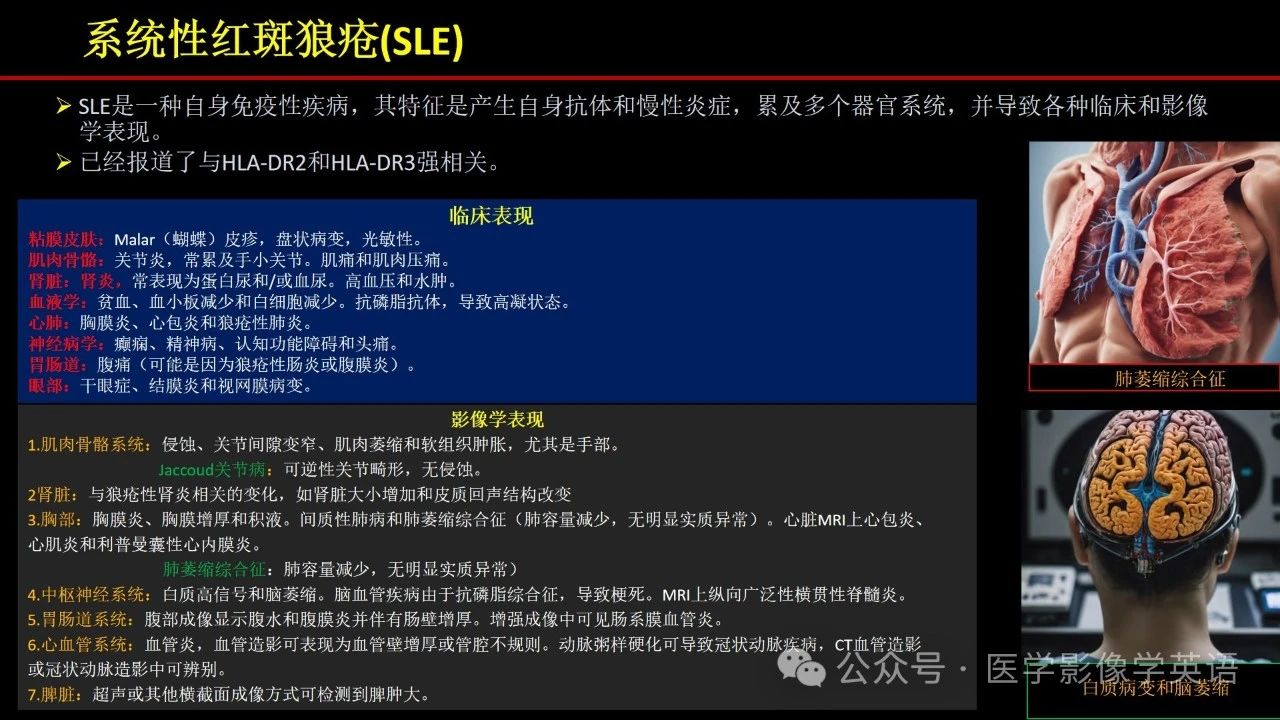

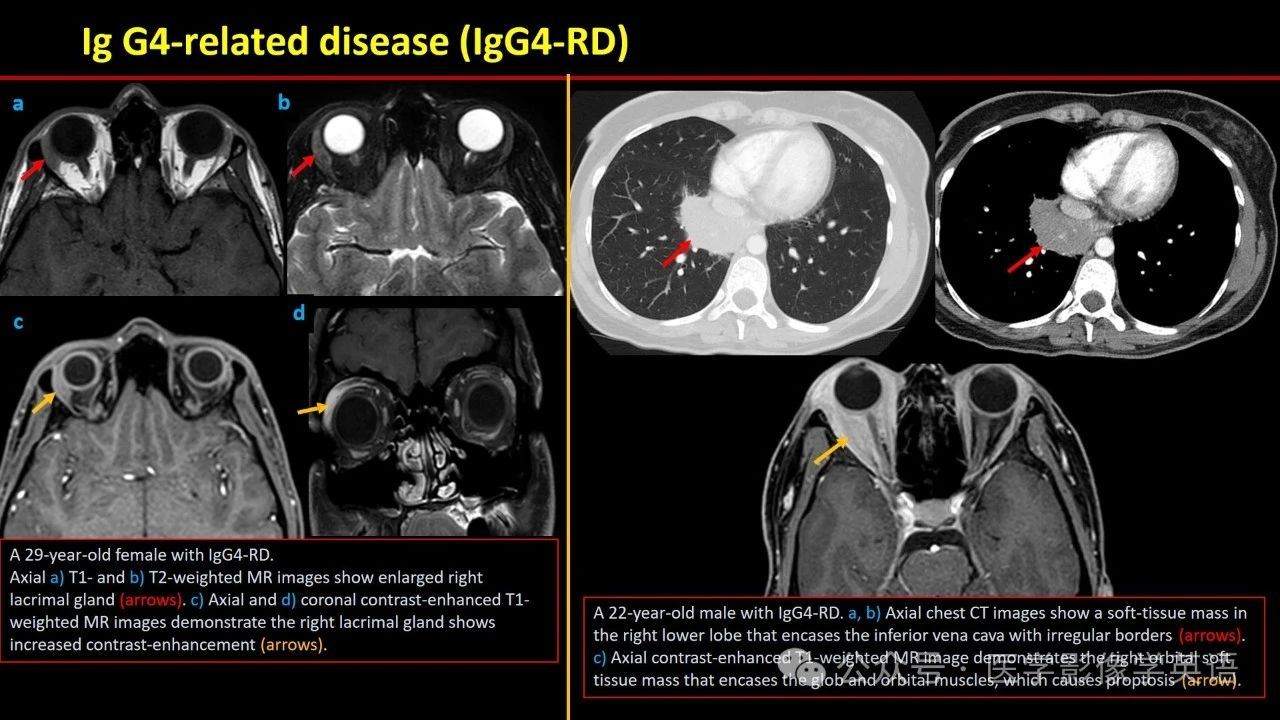

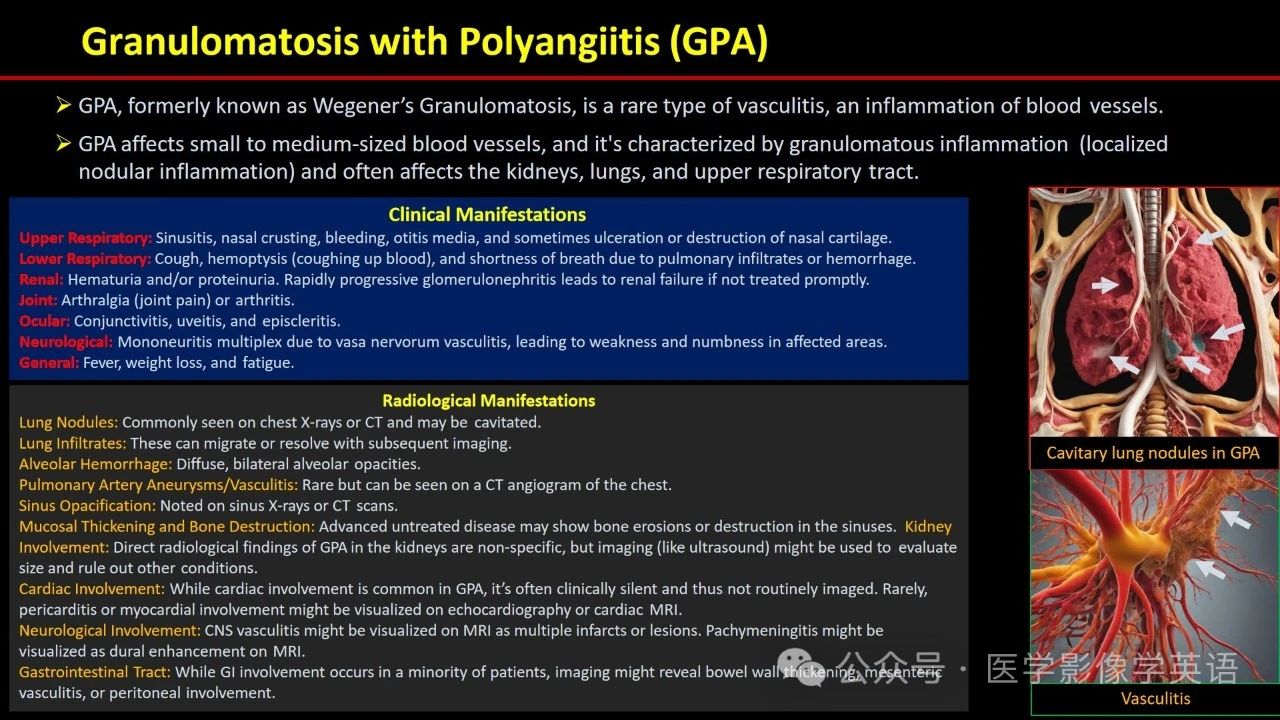

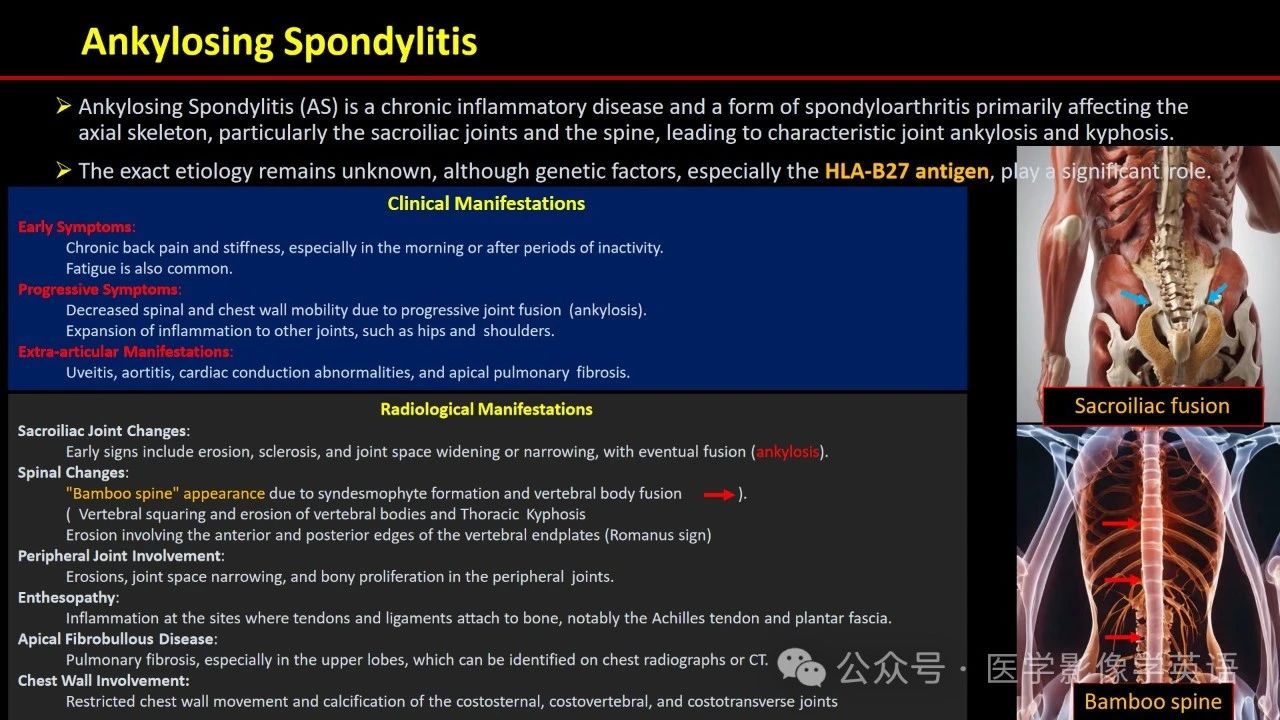

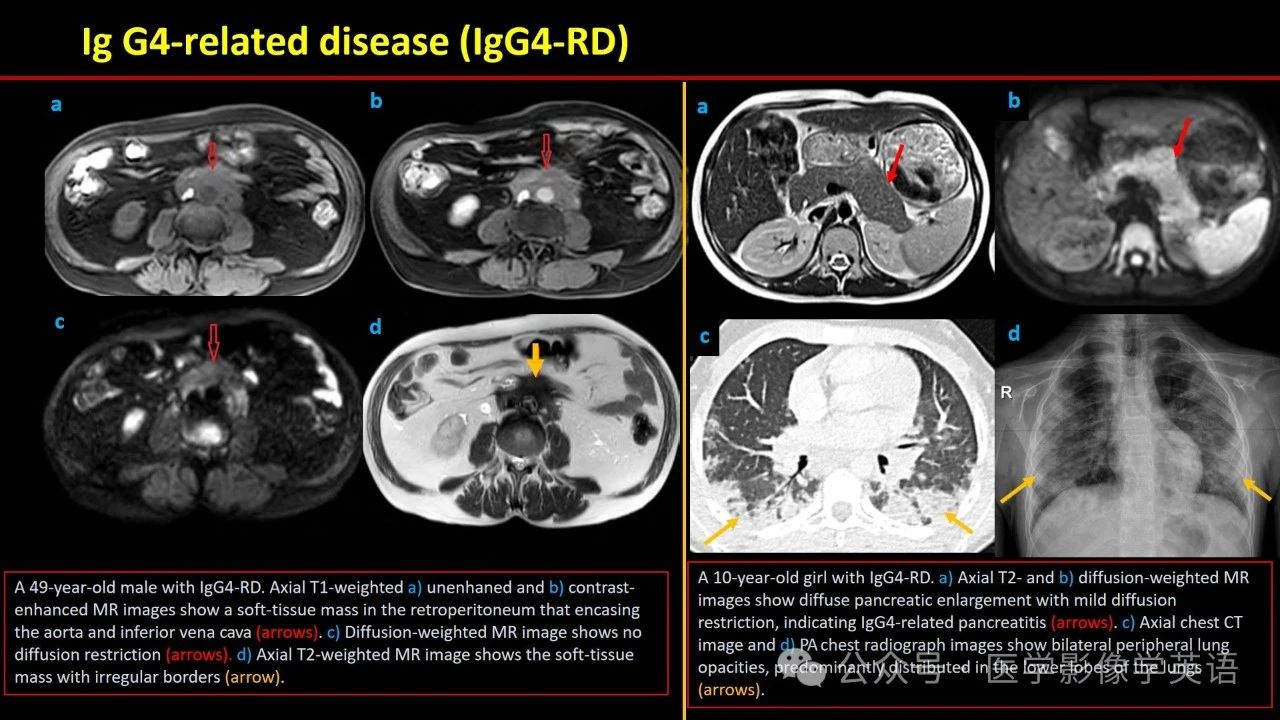

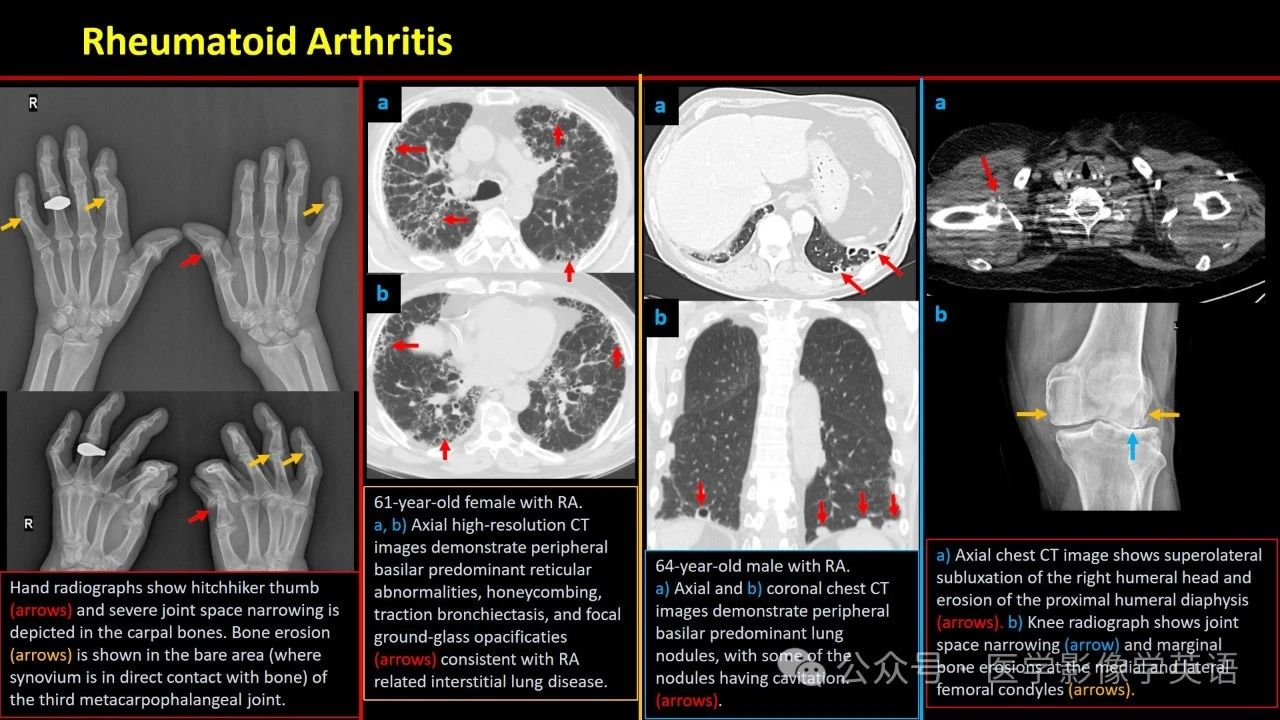

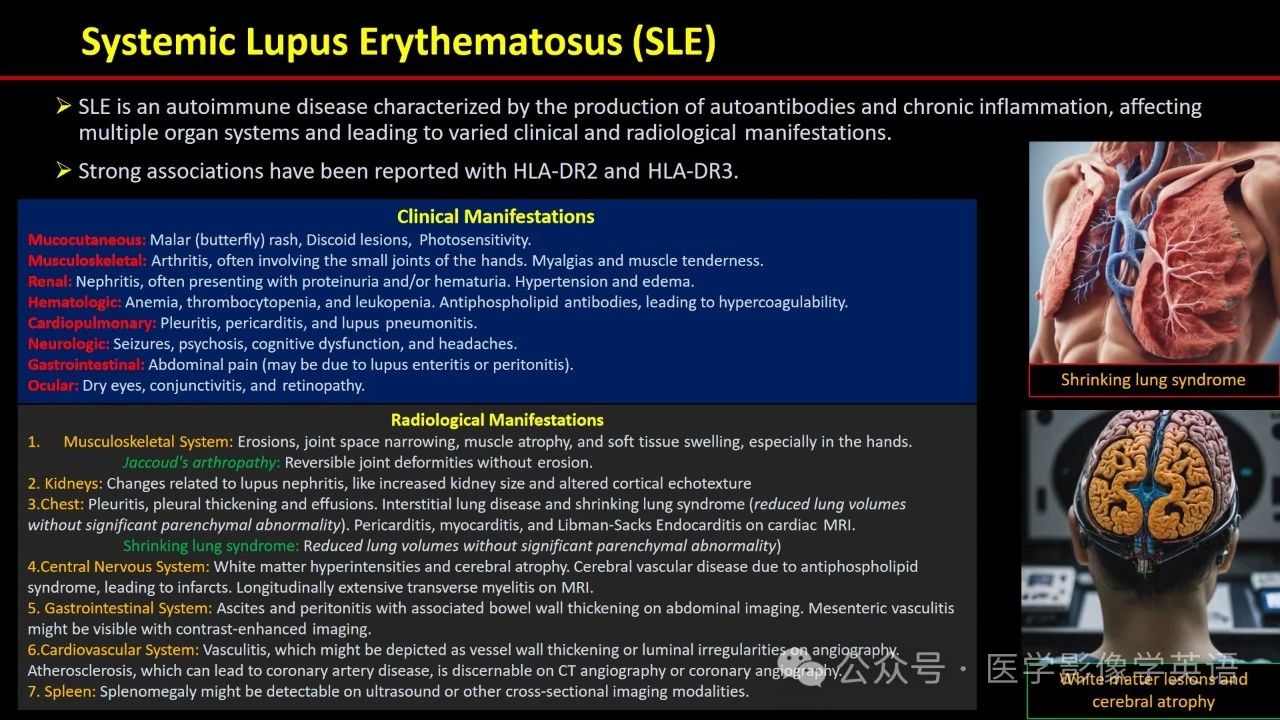

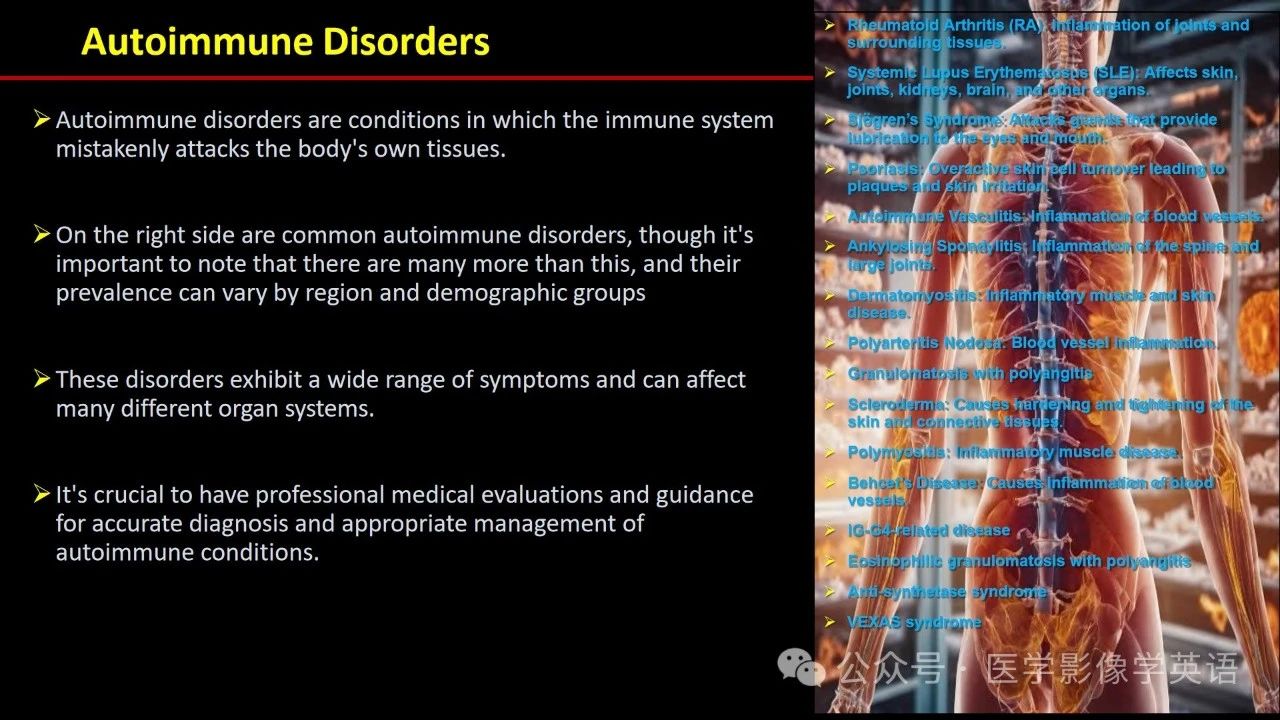

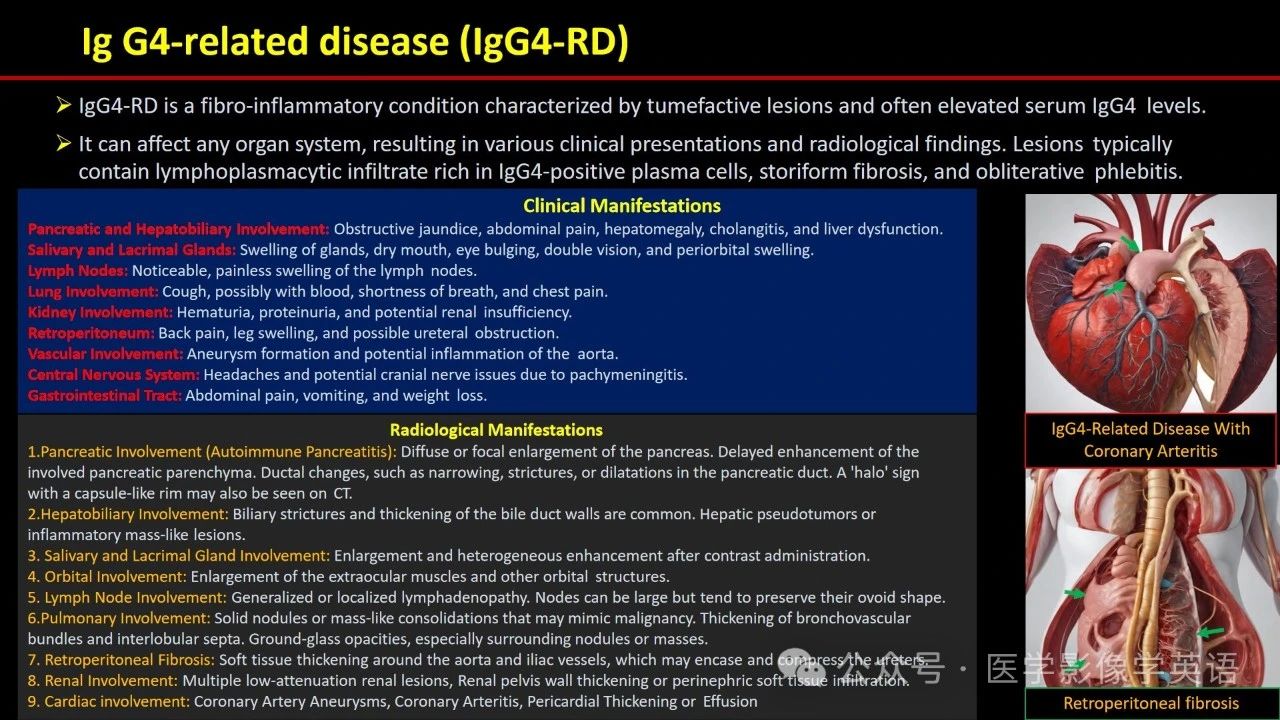

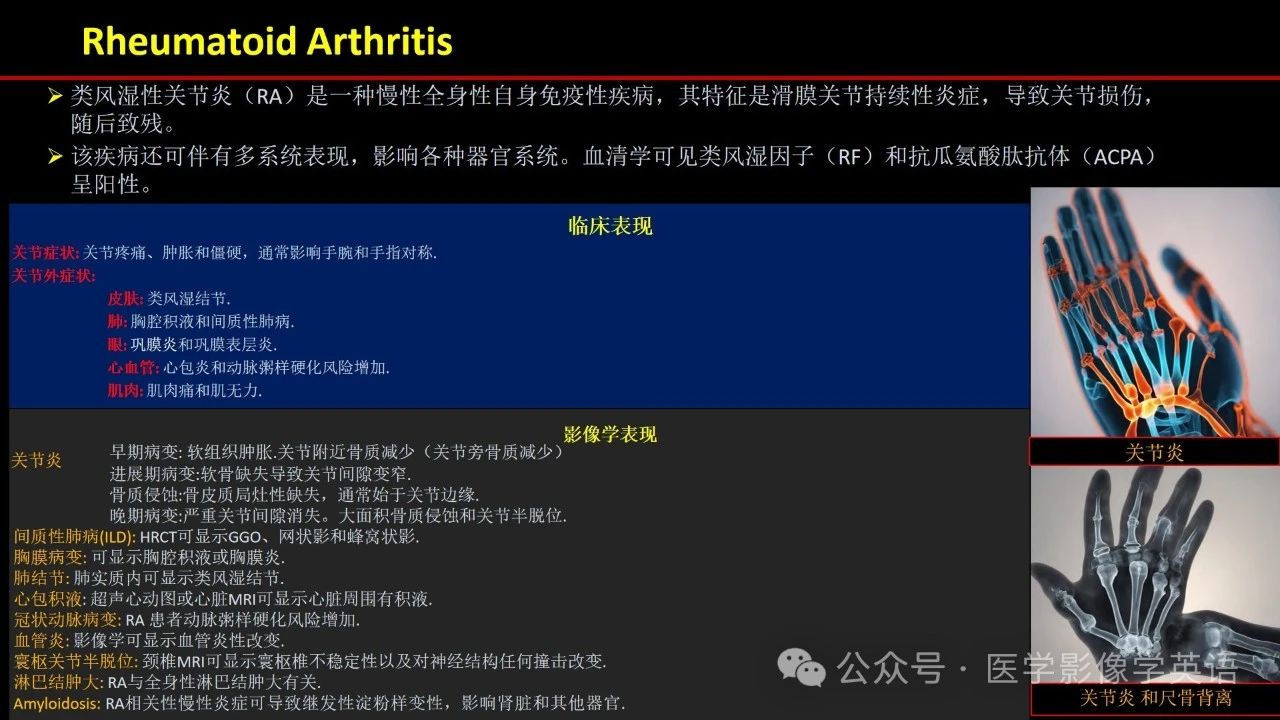

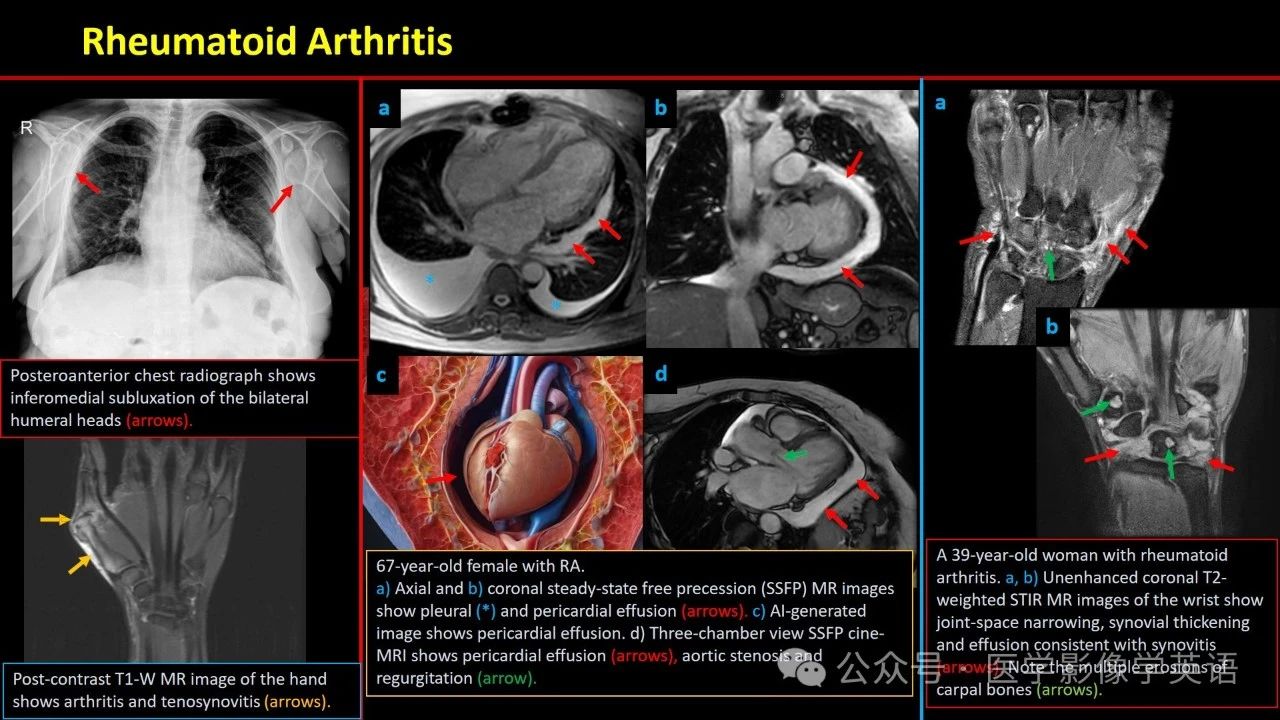

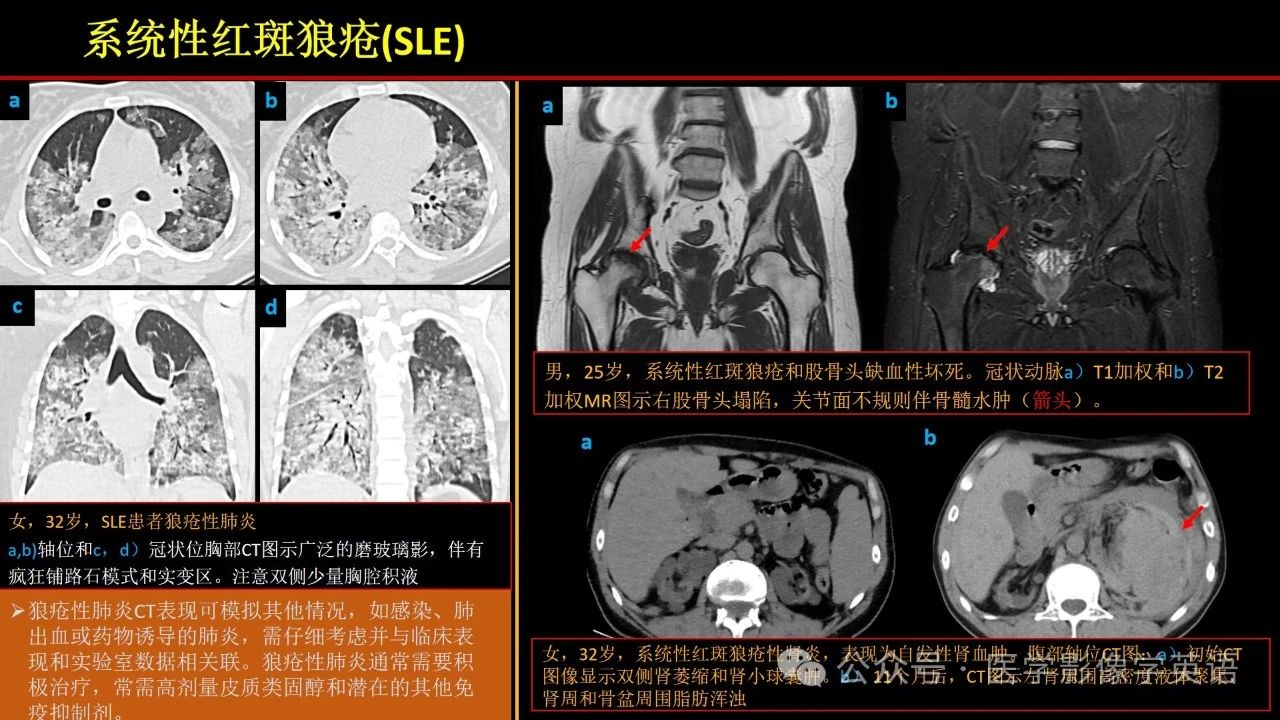

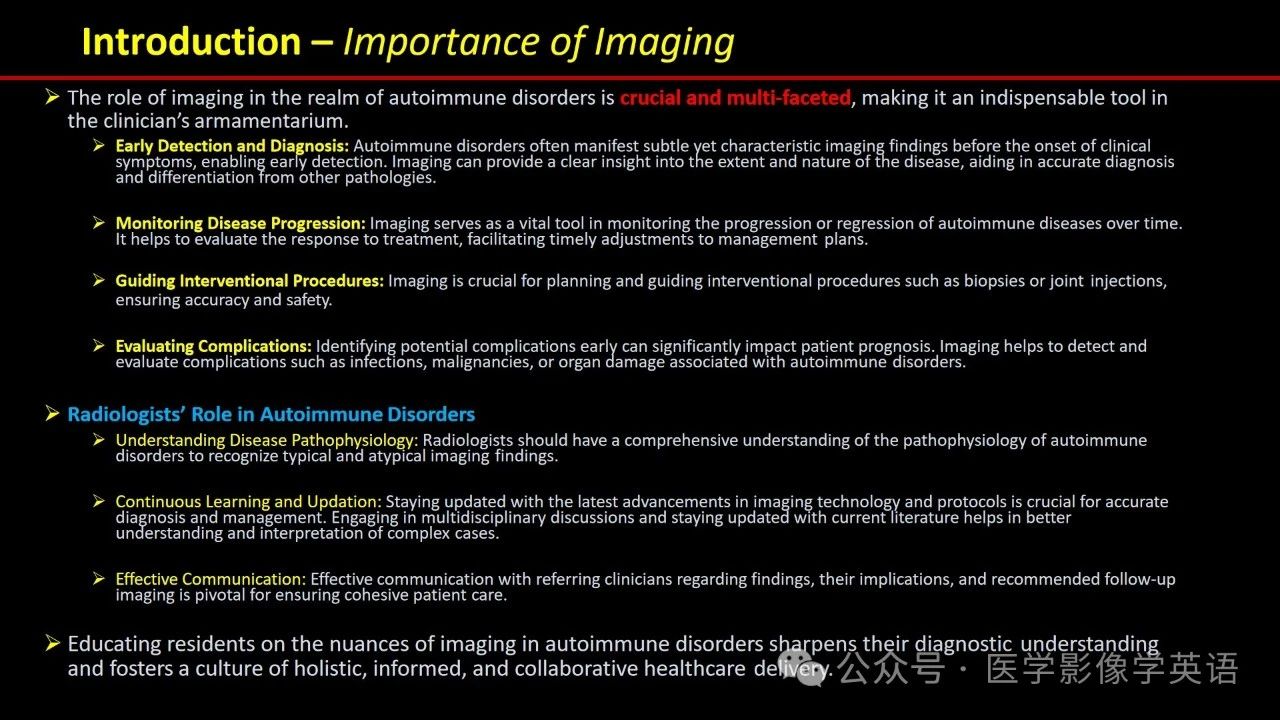

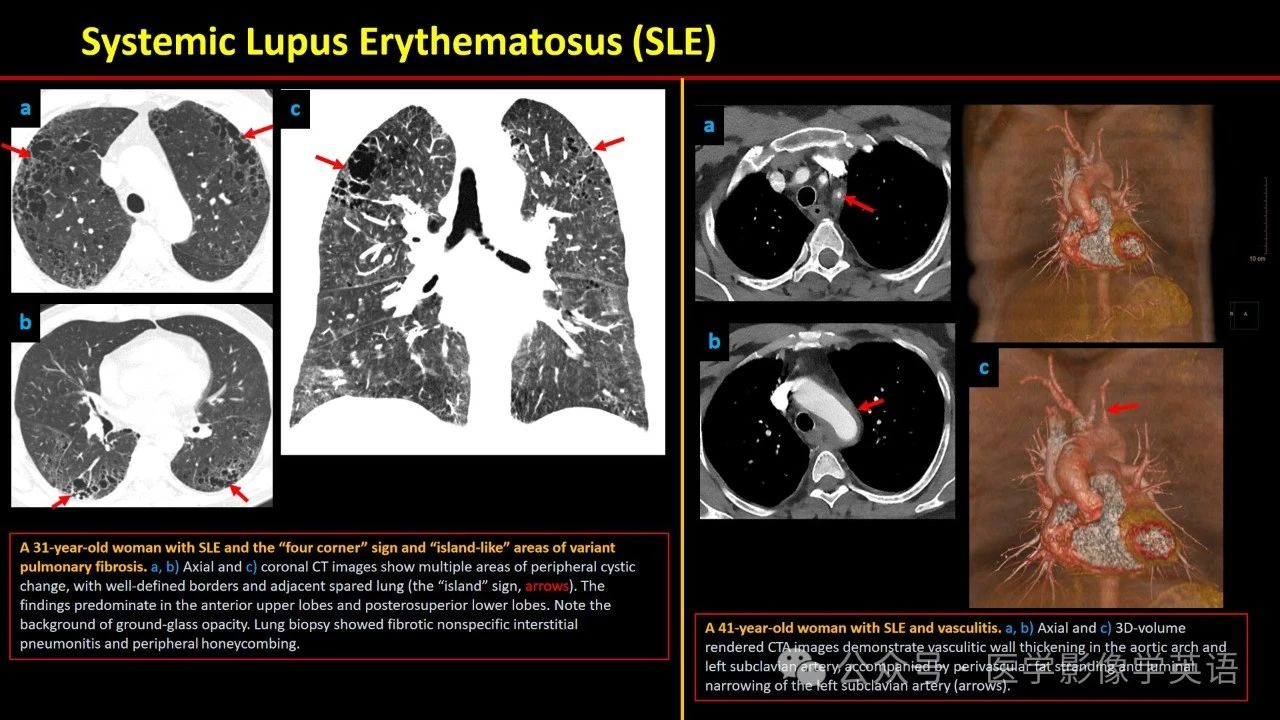

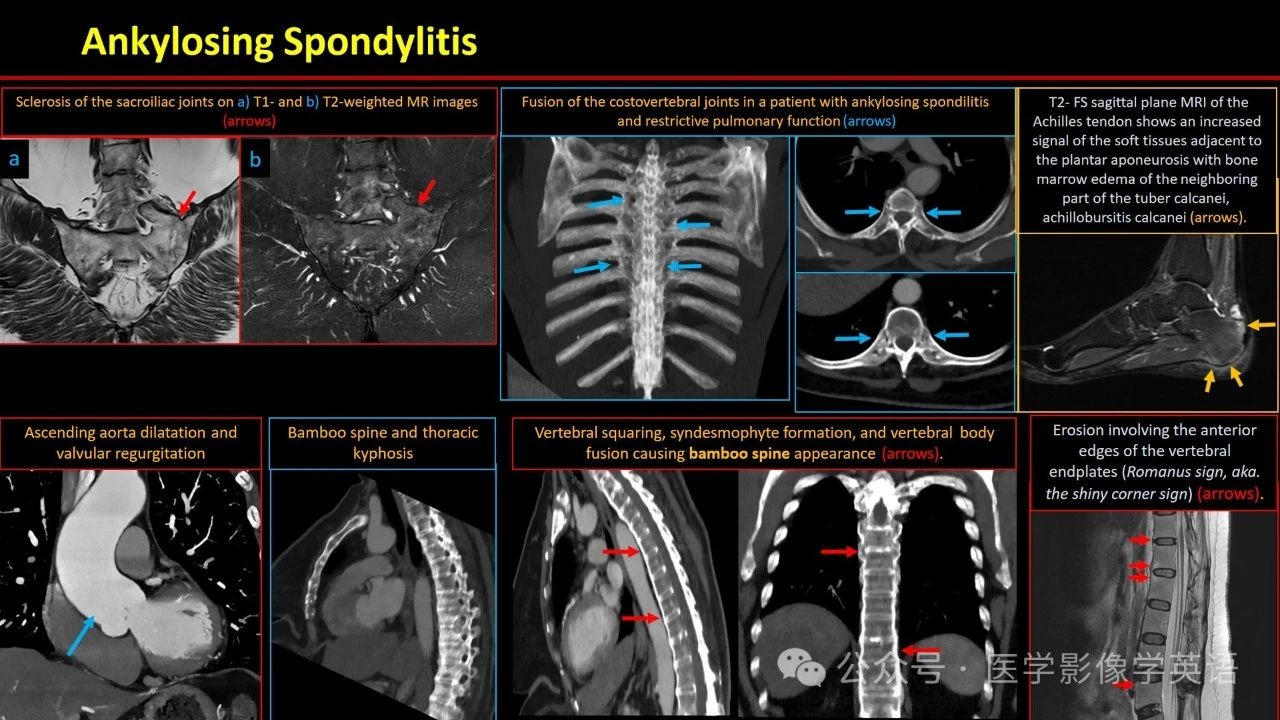

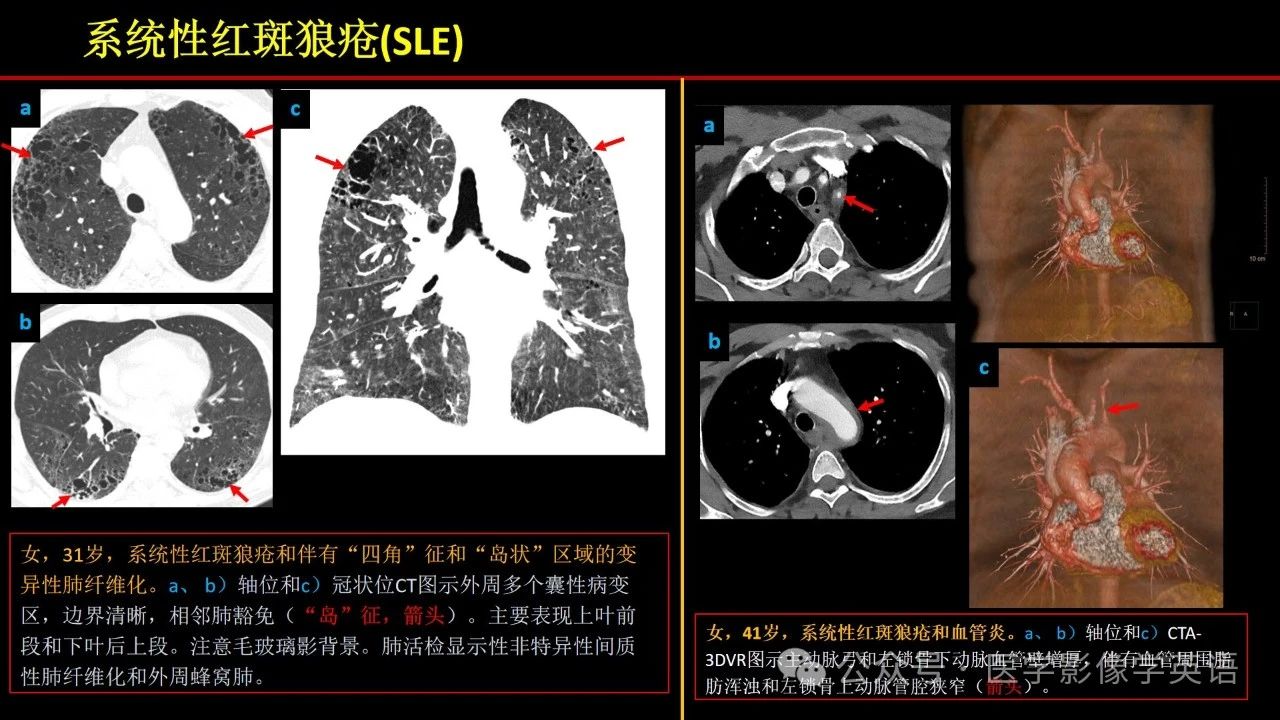

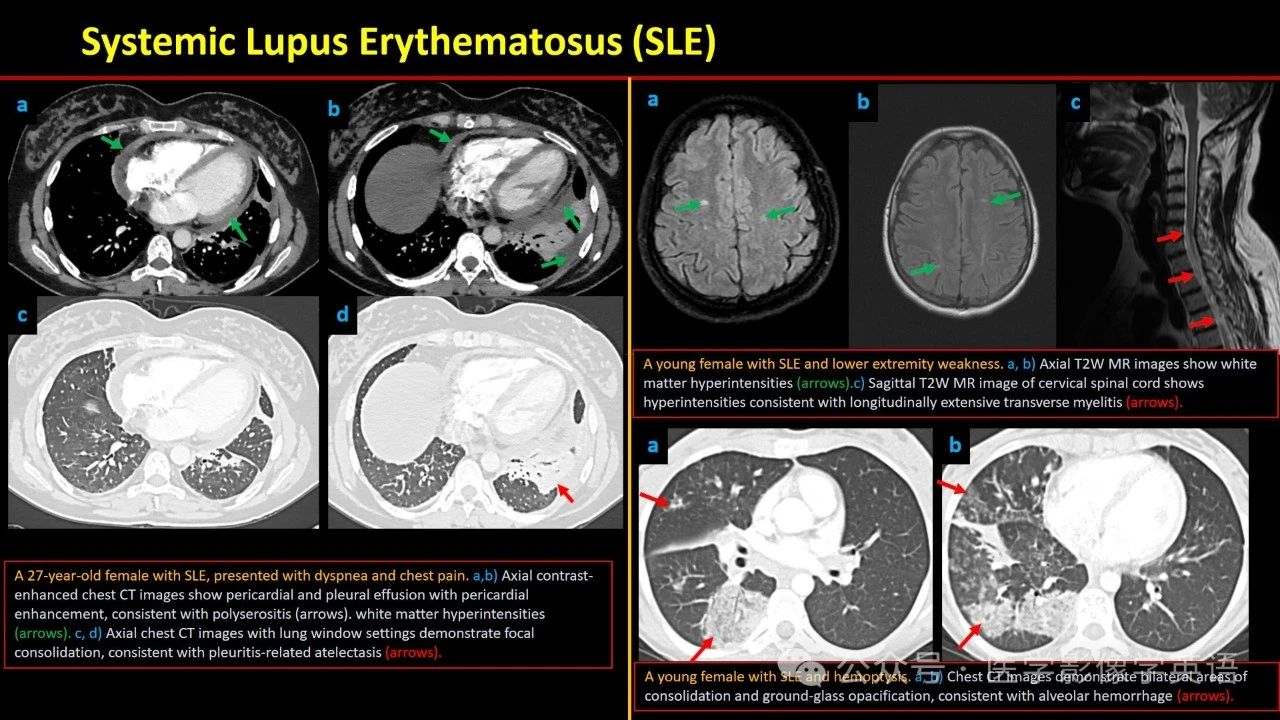

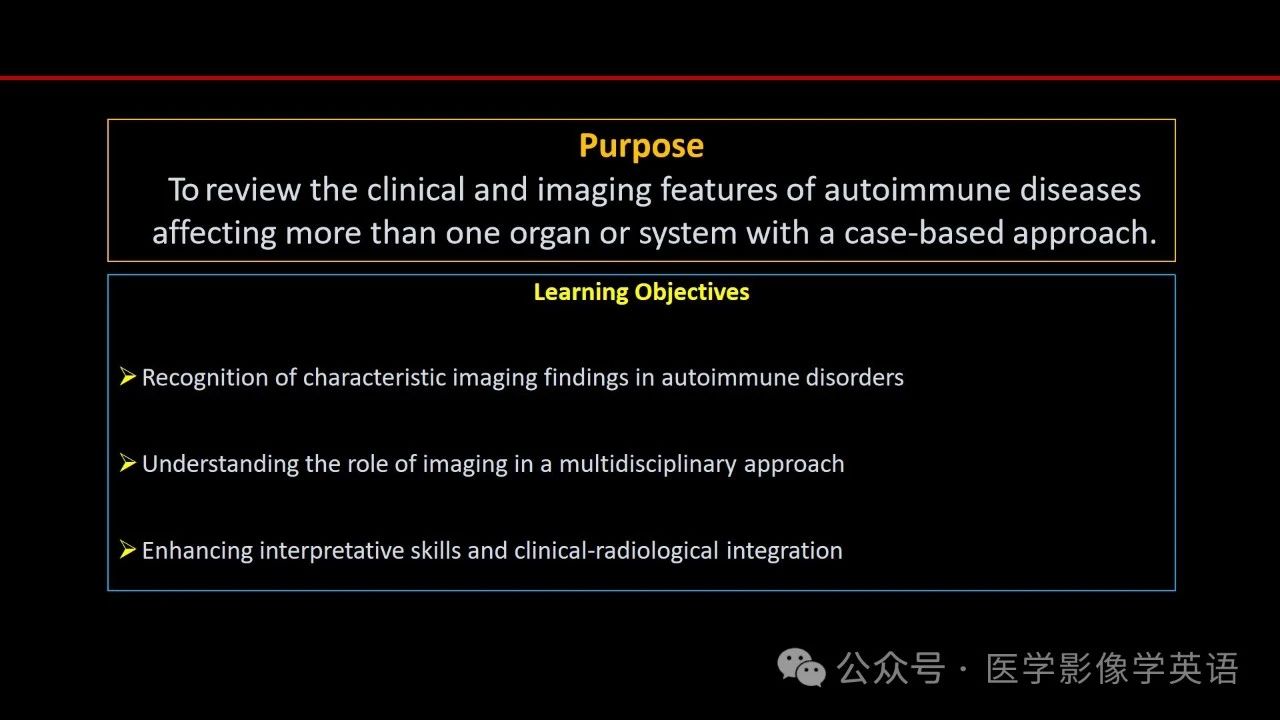

CHEE-6 — 2023 RSNA  Imaging Findings of Autoimmune Disorders: A Primer for ResidentsChest ImagingCHEE  |  Chest Imaging Education ExhibitsPresented on Sunday, November 26, 2023 9:00 AMAuthor:  Furkan Ufuk, MD*Teaching Points: - To provide an overview of autoimmune disorders, focusing on the most common conditions encountered in clinical practice. - To provide a primer on the imaging features of autoimmune disorders.*Table of Contents/Outline: Autoimmune disorders are a diverse group of conditions in which the body's immune system attacks its own tissues, resulting in inflammation and damage. The spectrum of autoimmune disorders is broad, ranging from systemic diseases such as systemic lupus erythematosus and rheumatoid arthritis to organ-specific diseases such as autoimmune pancreatitis. Imaging plays a crucial role in the diagnosis and management of autoimmune disorders. This exhibit will provide a comprehensive overview of the imaging findings of autoimmune disorders and will highlight the importance of recognizing these findings in the diagnosis and management of these conditions. By the end of the exhibit, residents will have a better understanding of the role of radiologic imaging in the diagnosis and management of autoimmune disorders.Disclosure:  F. Ufuk: None.





































































希望疫情早日结束!
